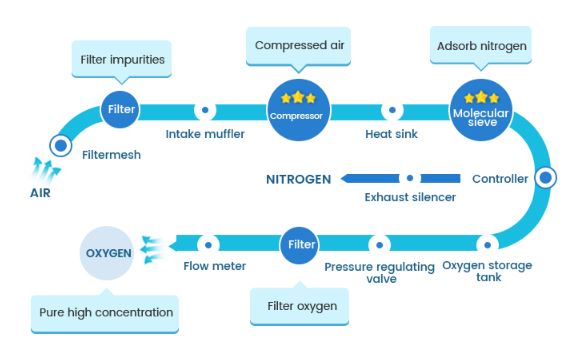

Working principle of high concentration oxygen concentrator
The air compressor removes oil, dust and other solid impurities and most of the gaseous water through the pretreatment system, and enters the adsorption tower equipped with molecular sieve. The nitrogen, carbon dioxide, and water vapor in the air are adsorbed, and the cycle cycle of decompression and desorption, Make compressed air alternately enter the adsorption tower to achieve separation, thereby continuously producing high-concentration oxygen
Product Parameter

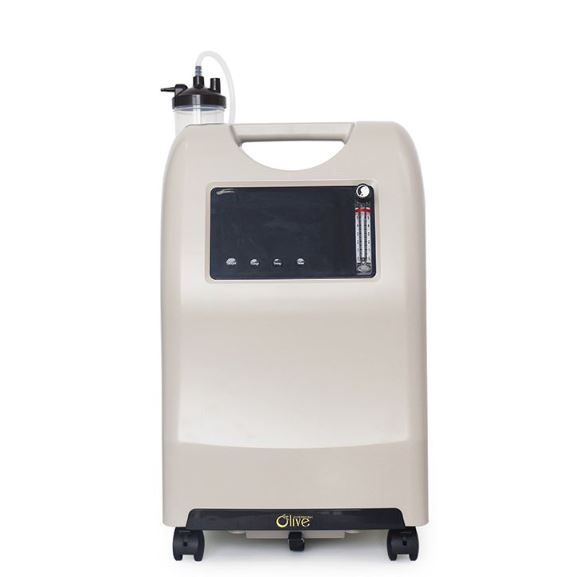

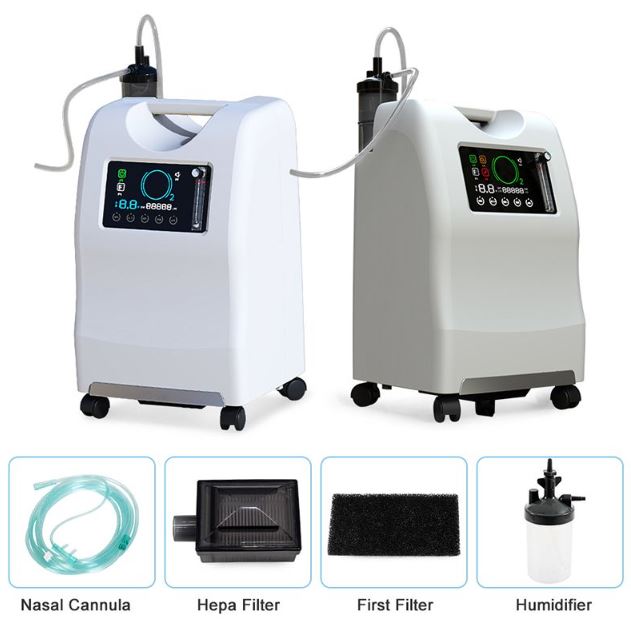

| OLV-10 10L High Flow Home Oxygen Concentrator With Nebulizer For All People | |
| Model | OLV-10W |
| Oxygen flow | 0-10L/min |
| Oxygen Purity | ≥ 93%±3% |
| Power supply | 220V 士 22V, 50Hz 士 1Hz/110V 土 11V, 60Hz 士 1Hz |
| Output Pressure | 20Kpa-60Kpa |
| Power Consumption | 800VA |
| Noise | 50dB |
| Net Weight | 20KG |
| Dimension(MM) | 344 X 306 X 565（mm） |
| Working System | Continuous flow |
| Atomization quantity | ≥0.15ml/min (Only modes with atomization function) |
Feature
- France imported CECA molecular sieve
- High oxygen purity 93%±3%
- Long life span more than 18000 hours
- 2 years warranty
- Large LED display
- Voice function
- Wheels with brake
- CE ISO approved
