BIO-AX® Camera System Overview
So much more than an “average” Body Worn camera
The BIO-AX® Body worn camera system offers advanced features for remote
operation, secure management, and seamless integration with control room
software. Its capabilities ensure reliable monitoring, secure data handling, and
effective communication for various user cases, including law enforcement, security,
Retail, Emergency Service and lone-worker protection.
Remote Camera Recording Activation: The camera’s recording function (including live video
and audio streaming) can be remotely initiated by the control room via our CMS (Control Room
Management Software).
Memory “Wipe” by Remote Command: In the event of a lost or compromised camera, the
control room can remotely send a “wipe” command via our CMS software. This “wipes” the
camera’s firmware and memory, ensuring data security.
Integrated Lone-Worker Protection: The system includes SOS functionality, live GPS tracking,
and geo-fencing, which are linked to active, user-specified alarms for enhanced lone-worker
safety.
Push-to-Talk (PTT) Capability: Facilitates direct communication between cameras or with the
control room, providing a reliable communication channel for real-time coordination.

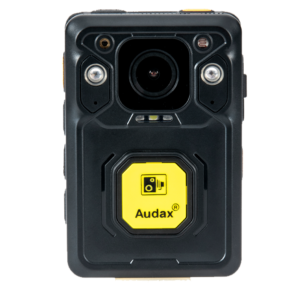

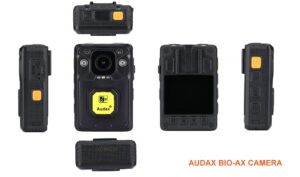

Product Datasheet – Live Stream 4G BIO-AX® Camera
Physical
Dimensions 84.5 × 56.3 × 27.3 mm.
Weight 160 grams.
Waterproof level IP67.
Drop resistance level 1.8m (5.9ft). IK09
Operating temperature -20°C to +55°C.
Storage Temp -40°C to +60°C.
Battery
Battery capacity 3200 mAh lithium ion
Continuous recording time @ 1080P up to 12 Hours; @ 480P
up to 15 Hours.
GPS and Wi-Fi on Recording 7+ hours
& Streaming time
Stand by time 100+ hours
Charging time Less than 240 minutes (4 hours).
Recording resolutions
2560×1440 @30fps
1920×1080 @60fps
1280×720 @60fps
1920×1080 @30fps
1280×720 @30fps
848×480 @30fps.
Streaming resolutions
1280×720 / 848×480 / 432×240
Streaming frame rate
5 / 10 / 15 / 20 / 25 / 30fps.
Streaming bitrate
300 / 500 / 1000 / 2000 / 3000 / 4000 / 5000 kbps.
Higlight
4G FDD-LTE/TD-LTE: Supports high-speed mobile connectivity.
Bluetooth 4 and Dual-Band Wi-Fi (2.4GHz and 5GHz): Provides flexible connectivity options, including AP/STA/P2P modes.
Built-in GPS: Ensures precise location tracking and fixing.
Infrared (IR) for Night-Time Recording: Capable of capturing footage in low-light / Full Dark conditions up to 10 meters.
External Nano SIM Card Slot: Allows user choice of SIM card for 4G data transmission.
EIS Anti-Shake Technology: Reduces camera shake for smoother video capture.
SOS Panic Alarm / Lone Worker Button: Enhances safety with a dedicated emergency alert function.
Genetec Approved and Compatible with
Other VMS: Fully integrates with various Video Management Software’s (VMS), with APIs available for your customization.
Complies with UK Home Office Technical Guidance: Meets the strict standards of the UK Home Office and conforms to BS EN 8593:2017
AES 256 Encryption: Securely encrypts files on the camera memory and RTSP live video/audio stream.
4G Live Streaming: Stream video and audio in real-time over 4G networks, with the option to simultaneously record locally.
Crocodile clip attachment with 360° capability as standard.
KlickFast Type Compatible, Molle mount, magnetic mount,
shoulder, and pocket mount options available.

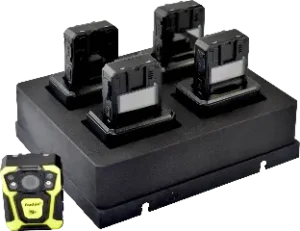

Pogo Pin connection which supports dock & go cableless charge
and video download Micro USB 2.0 compatible.
